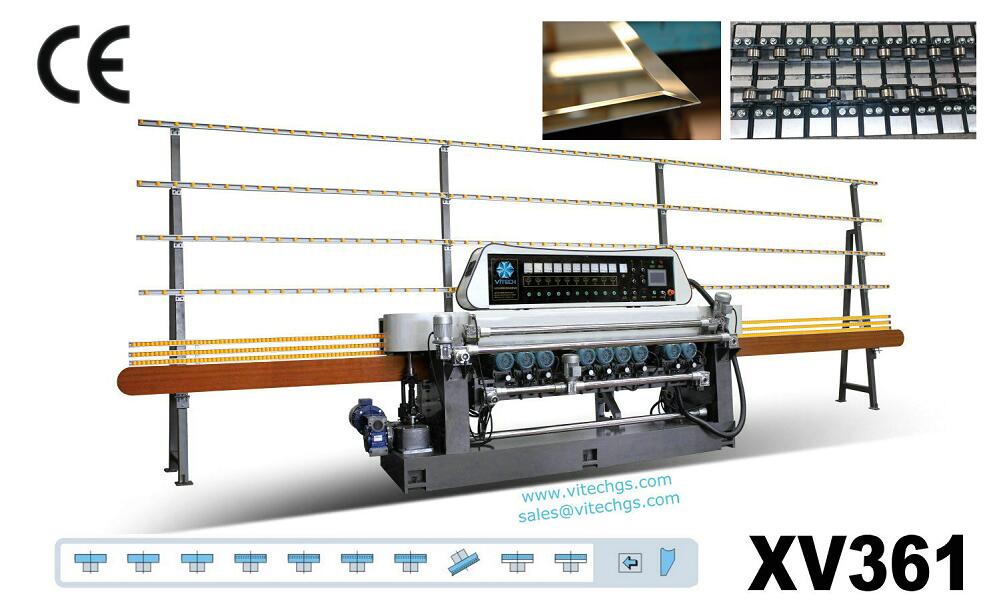

XV361 10 Spindles Glass Straight-line Beveling Machine

1．Technical Specifications:
1.1 Processing speed(m/min):0.5~5.0
1.2 Min.glass size (mm) :100×100. Max.glass size(mm):2500×2500
1.3 Glass Thickness (a) :3~19mm
1.4 Remain thickness (b): ≥1.5
1.5 Bevel width B max:40mm
1.6 Bevel angle(θ) :0°~25° (θ=arc sin (a-b)/B)

1.7 Size of whole machine L×B×H（mm）6700×1300×2500(XM361)
1.8 Size of main part L1×B1×H1（mm）4966×1225×1620(XV361)
1.9 New Weight（kg）4000(XV361)
1.10 Power（kw）23.0(XV361)
1.11 Stainless steel water tank
1.12 The in feed and out feed adopts Timing belt to convey.

2.Wheels position: (From input to output end) ←
The wheel disposal of XV361 Glass straight-line beveling machine:

NO.10	NO.9	NO.8	NO.7	NO.6	NO.5	NO.4	NO.3	NO.2	NO.1
Polishing	Polishing	Polishing	Polishing	Semi-Fine grinding wheel	Semi-Fine Grinding wheel	Semi-Fine Grinding wheel	Grinding Hemline	Semi-Rough Grinding	Rough Grinding
Wool Felt wheel	Wool Felt wheel	Wool Felt wheel	10S60 Or 10S80	700mesh Resin wheel	500mesh Resin wheel	240mesh Resin wheel	Round Diamond Wheel	Diamond wheel	Diamond wheel

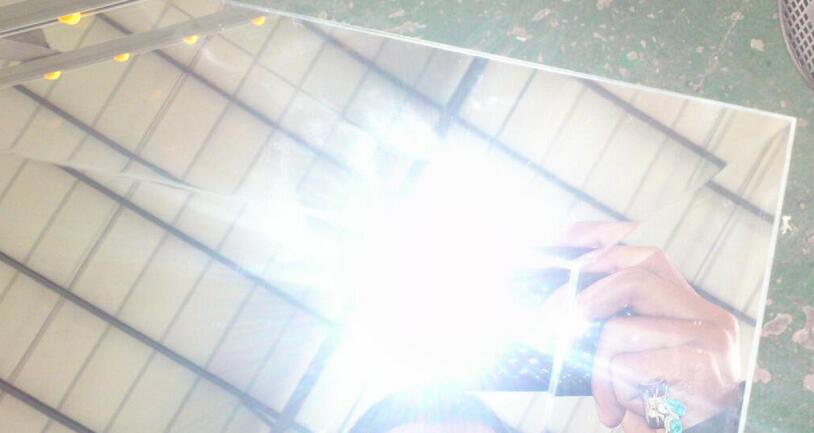

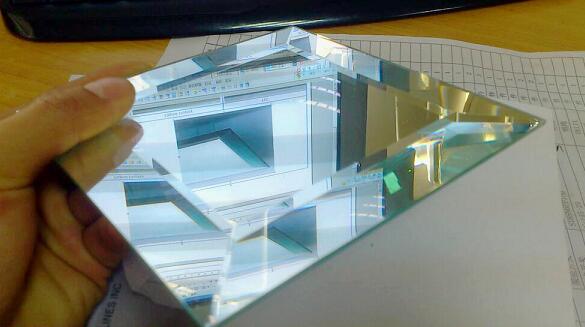

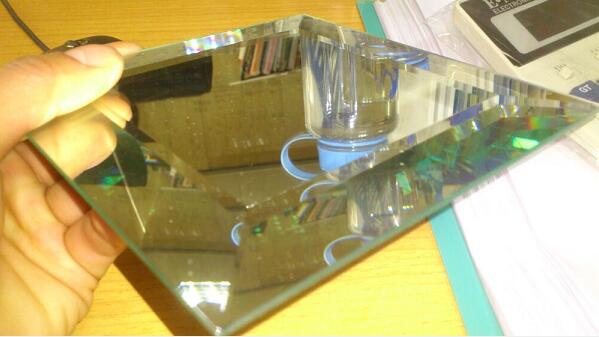

3.Glass samples:

4.General Information:
4.1 XV361 is designed for grinding and polishing a bevel edge, with bottom edge of glass with different size and thickness.
4.2 Rough grinding, fine grinding, polishing of bevel and grinding of bottom edge can be completed in one time.
4.3 The Base/Beam/Swing Frame/Upright column and Grinding Head are of casting materials(Annealed to prevent deformation).
They can extreme resistance to abrasion and deformation,as well as the best shock absorbing properties.
4.4 Processing thickness,angle and remaining thickness appears on digital display Or PLC.

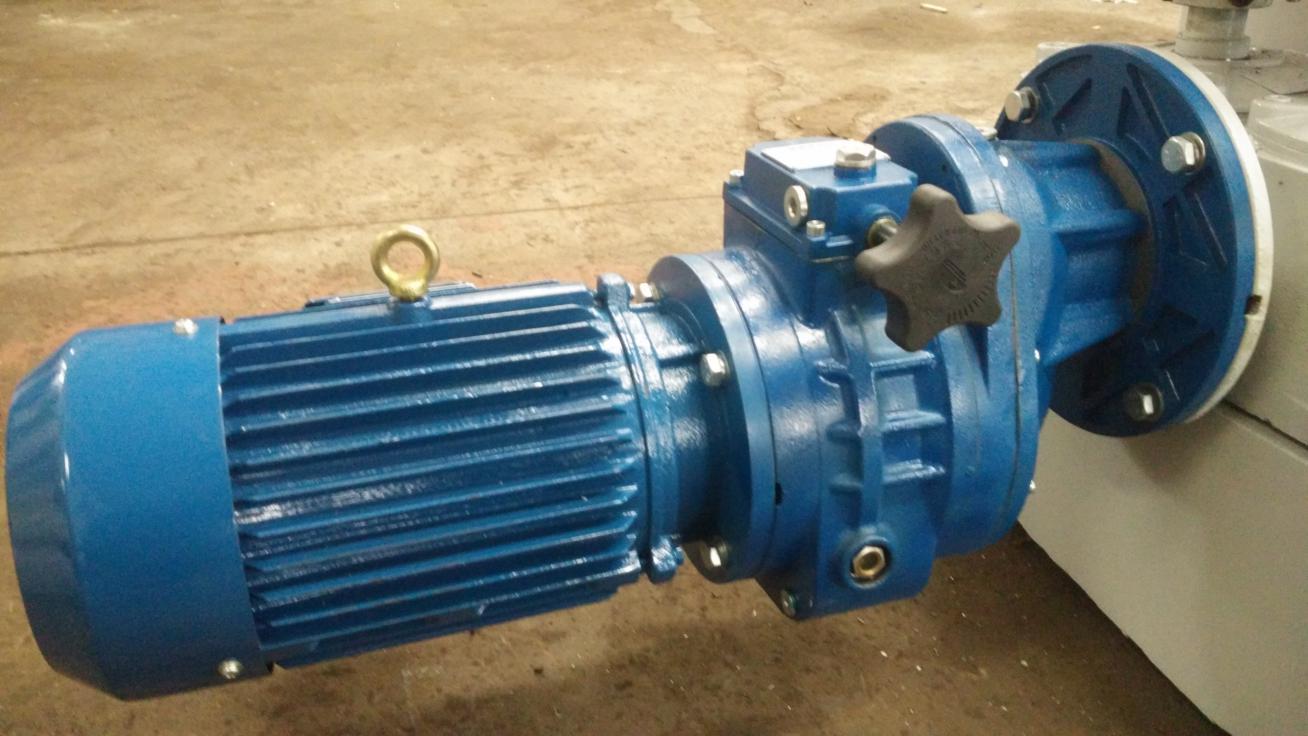

4.5 The processing speed is adjustable with a 2.2kw step-less motor which offers a wide range of speed selection.

Or you can choose the Frequency Inverter,the price will be US$1,500 more than Stepless gear motor:

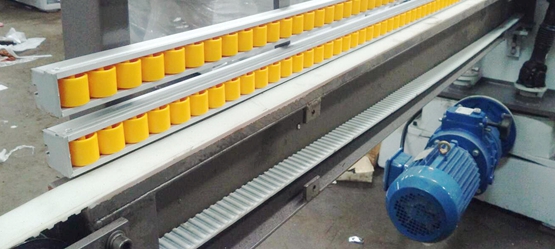

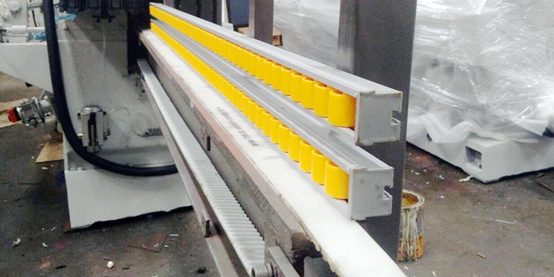

4.5 Input and output conveyor adopt timing belt which can improve the transmission precision.

5.Machine Details:

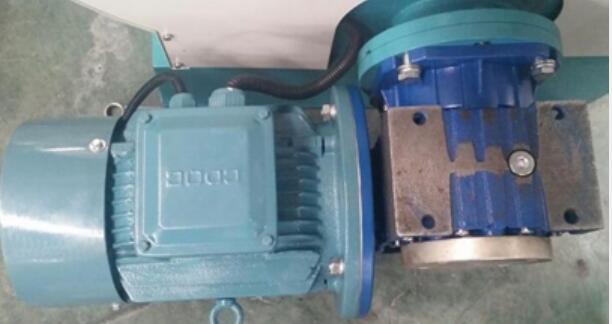

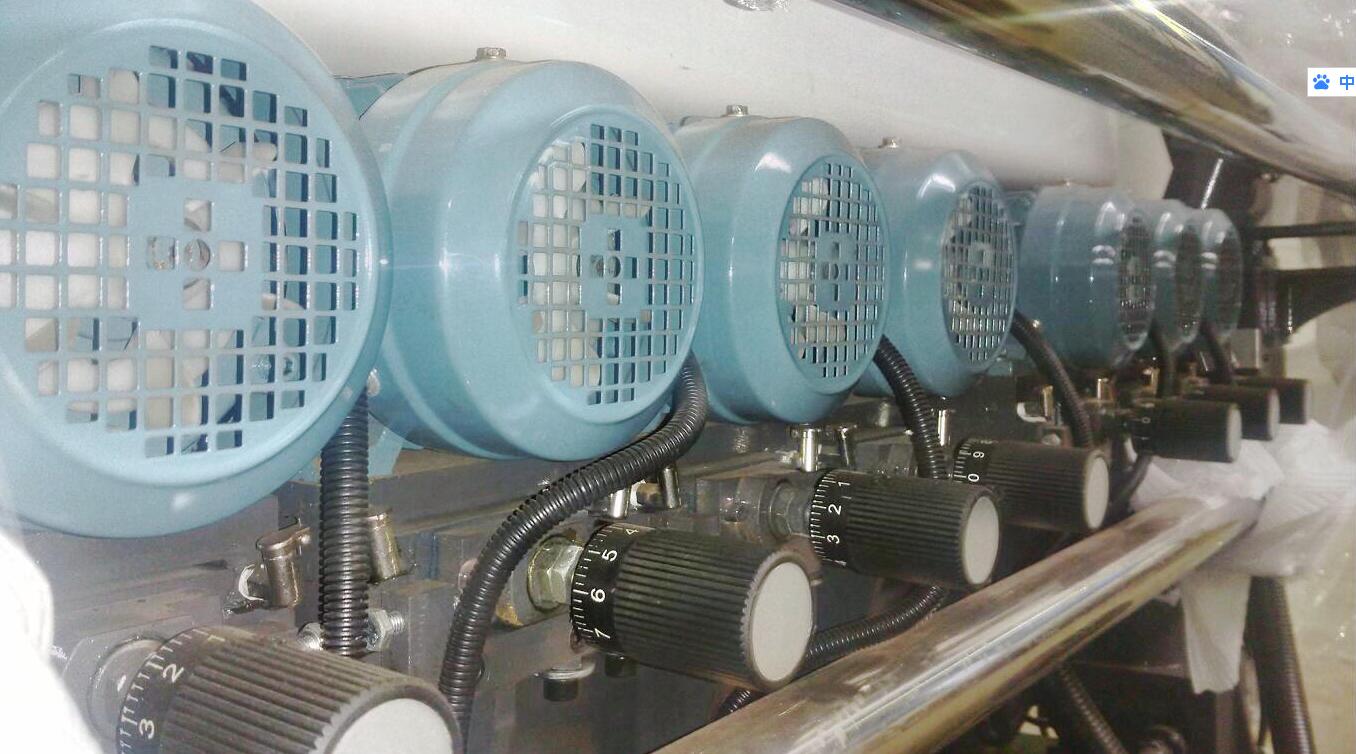

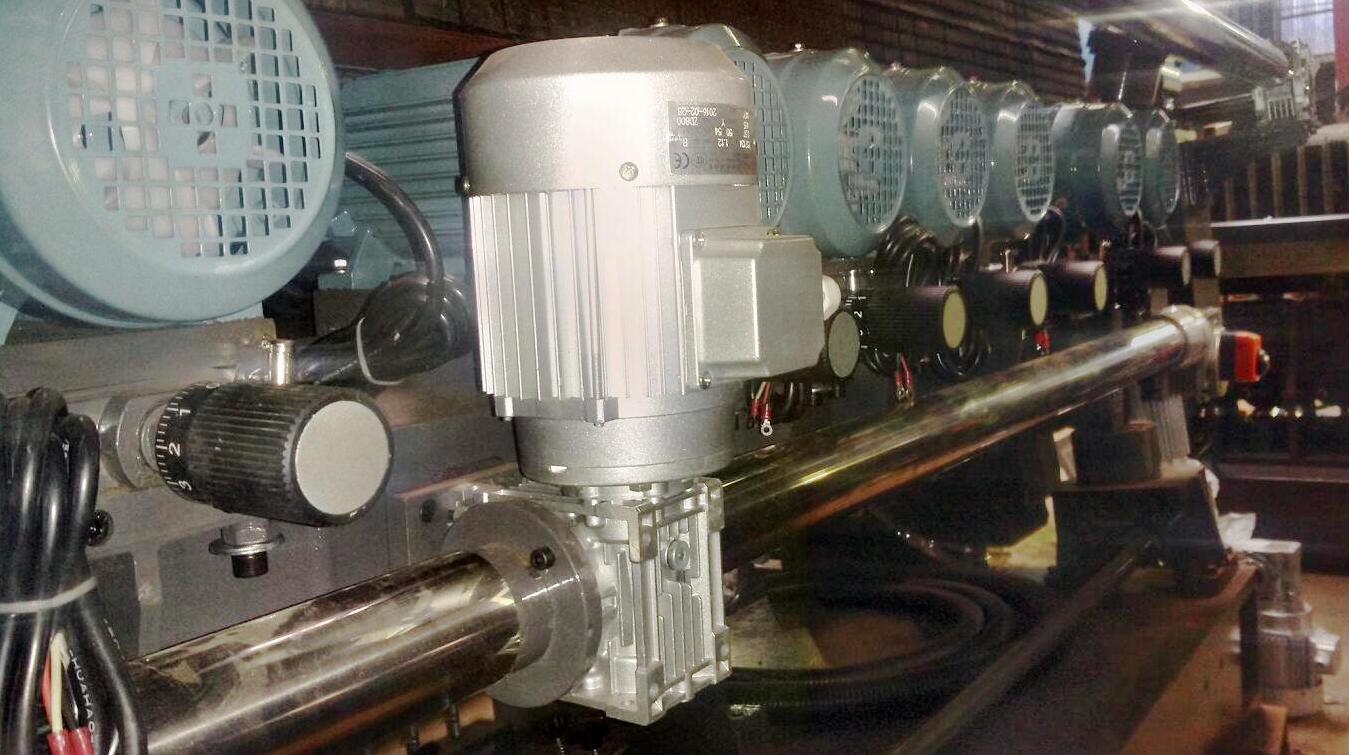

5.1 ALL OF THE SPINDLES ARE ABB GERMANY MOTORS ( Made in Germany):

5.2 Electrical components adapts Schneider ( made in Germany)

6.Option:

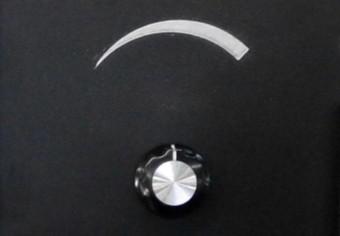

6.1 Digital Display Control:There have digital meter onto the machine panel to adjust the glass thickness. You just need to increase or decrease the parameter you need by the relative switch, then machine can be adjust automatically.

6.2 PLC and Pneumatic Control:Adopt PLC and touch screen, you can input the parameter you need and machine will adjust automatically.
