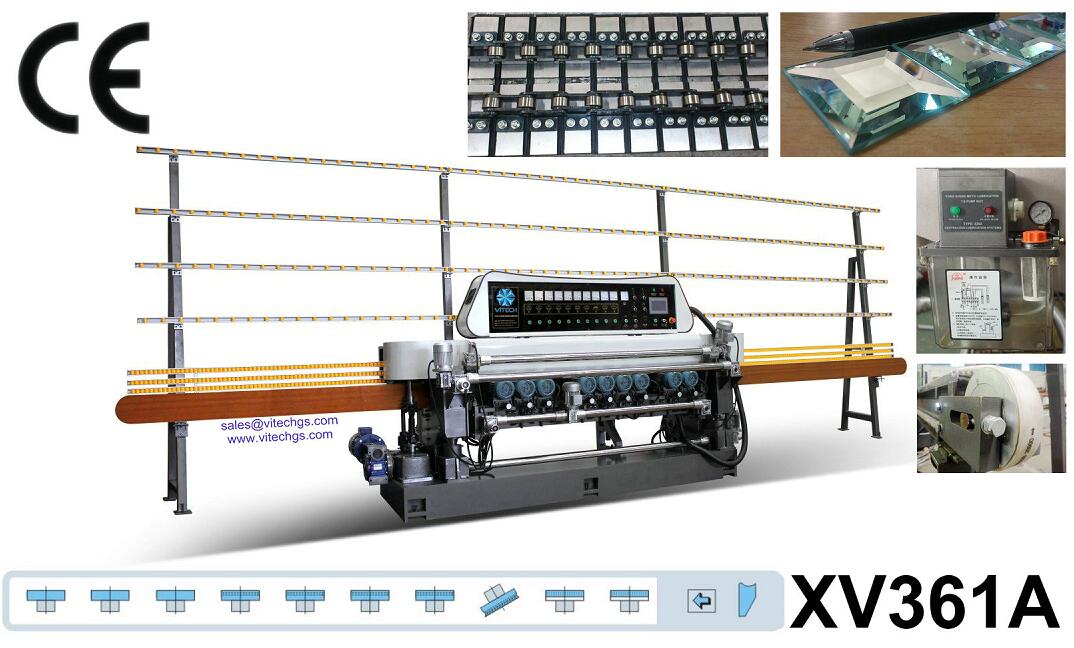

XV361A Glass Straight-Line Beveling Machine

1.Technical Parameter
1.1 Min.processing size: 25*25mm/Max.Processing Size:2500mm*2500mm.
1.2 Processing thickness: 3~19mm.
1.3 Processing speed: 0.8~6.0m/min.
1.4 Max.width of bevel: 45mm.
1.5 Bevel degree: 3°~45°.
1.6 Weight: 4800kg.
1.7 Power: 24.5kw.
1.8 Dimension Size: 7000mm×1300mm × 2500mm(L*W*H)
1.9 Packing Size:4200mm*950mm*1600mm(L*W*H)

2.General Description
2.1 XV361A straight line beveling machine are used for grinding bevel and bottom edge of glass with different size and thickness.
2.2 Rough grinding, fine grinding, polishing of beveling edge and grinding of bottom edge can be completed in one time.
2.3 It is easy to adjust the feeding of motor in the all and the one and beveling angle while glass thickness is being changed.
2.4 Same thickness of glass sheet can be process continually. The brightness of finished surface will be almost the same as glass itself.
2.5 The processing speed is adjustable with a 2.2kw step-less motor which offers a wide range of speed selection.

Or you can choose the Frequency Inverter,the price will be US$1,500 more than Stepless gear motor:

2.6 Input and our put conveyors adopt timing belt which can improve the stability of transmission.

2.7 The grinding wheels are connected to the motors directly ,which is convenient to adjust and maintain.
At the same time,The large diameter cooling universal water pipe can cool down the glass and the grinding wheels quickly,which can provide the best polishing quality of Glass.

2.8 Front beam can be adjusted up and down which is suitable for processing small pieces of glass.
2.9 All of the spindles are ABB Germany motors.

2.10 Electrical components adapts Schneider ( made in Germany)

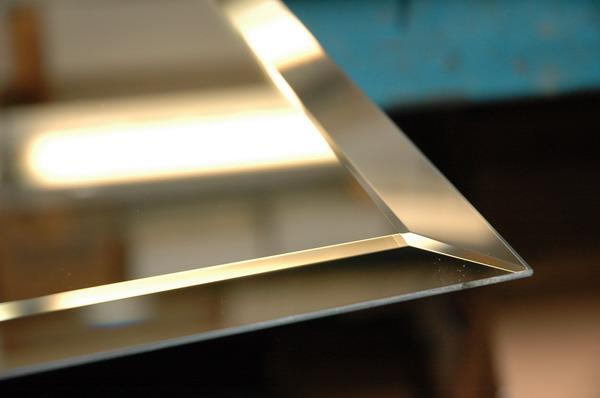

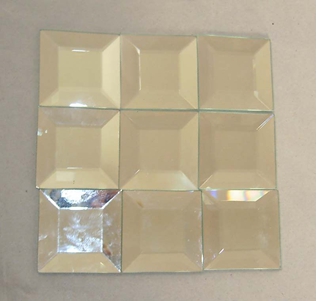

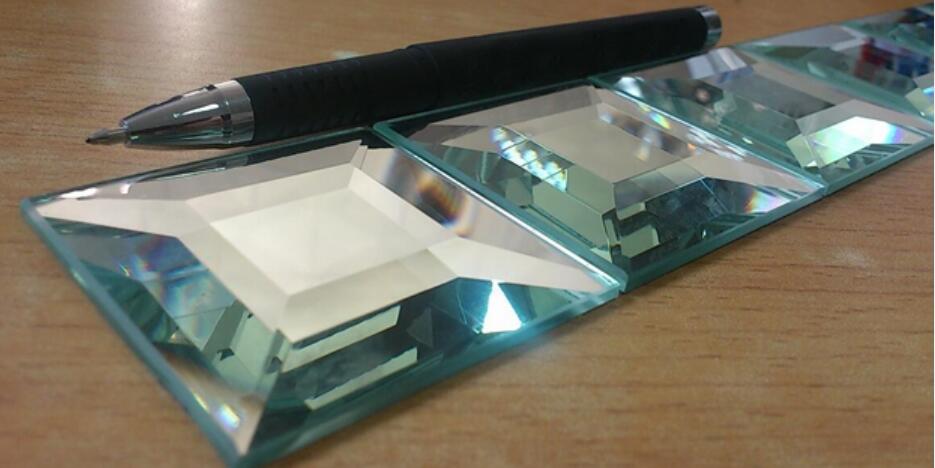

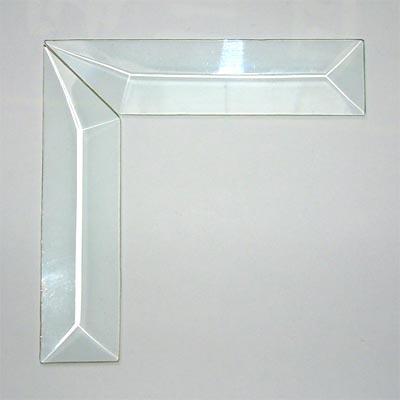

3.Glass Samples

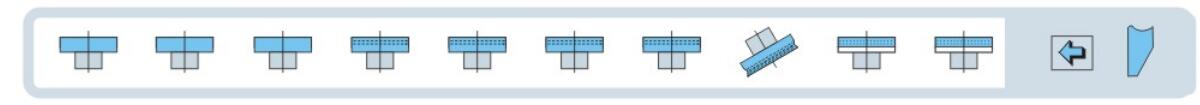

4.Wheels position: (From input to output end) ←
The wheel disposal of XV361A Glass straight-line beveling machine:

NO.10	NO.9	NO.8	NO.7	NO.6	NO.5	NO.4	NO.3	NO.2	NO.1
Polishing	Polishing	Polishing	Semi-fine grinding wheel	Semi-fine grinding wheel	Semi-fine grinding	Semi-fine grinding	Grinding hemline	Semi-Rough grinding	Rough grinding
Wool felt wheel	Wool felt wheel	Wool felt wheel	700mesh Resin wheel	500mesh Resin wheel	320mesh Resin wheel	240mesh Resin wheel	Round Diamond Wheel	Diamond wheel	Diamond wheel

5.Option and Price:

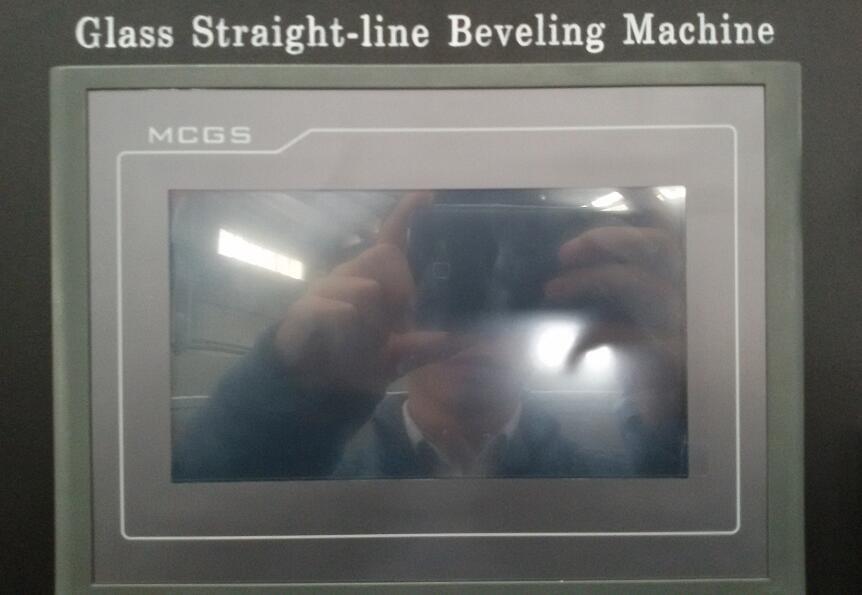

PLC and Touch Screen full automatic control.
Glass thickness and angle and remain thickness and Front Beam can be controled automatic.

| Time:2021-11-08
