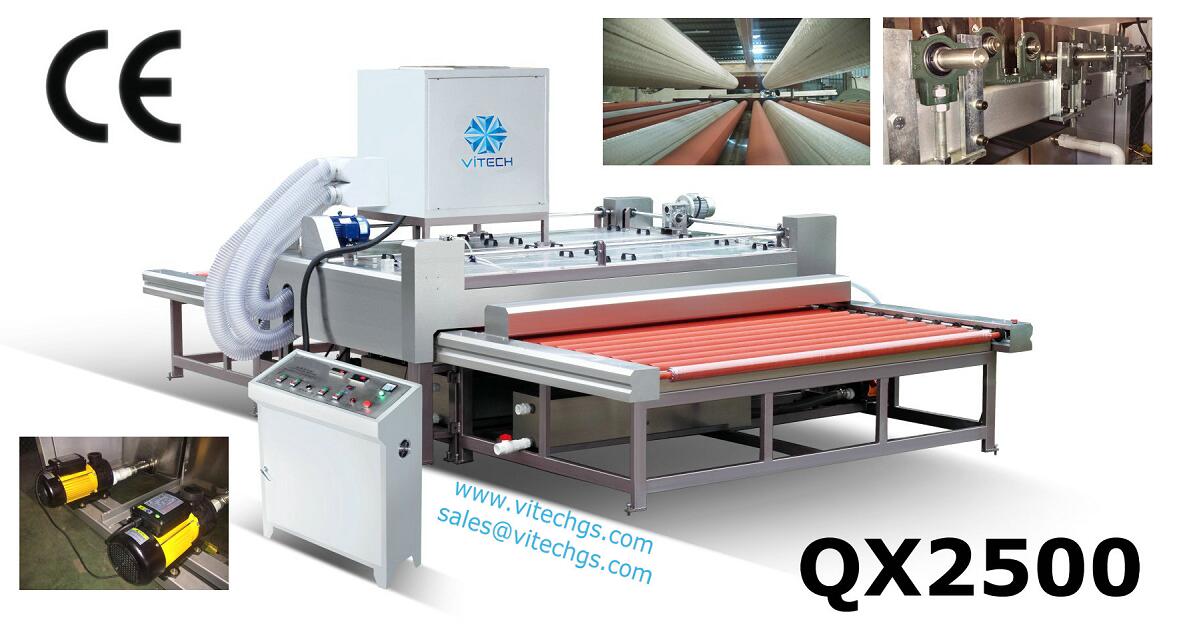

QX2500 Horizontal Glass Washer and Dryer




1.Brief introduction:
1.1 QX25 Glass Washer & Drier adopts horizontal structure and is used for cleaning and drying flat glass.
1.2 It is made up of 3 pairs of brush for clear and 2 pairs of Knives for drying.
1.3 It can process different glass like float, coating and LOW-E glass by different options.

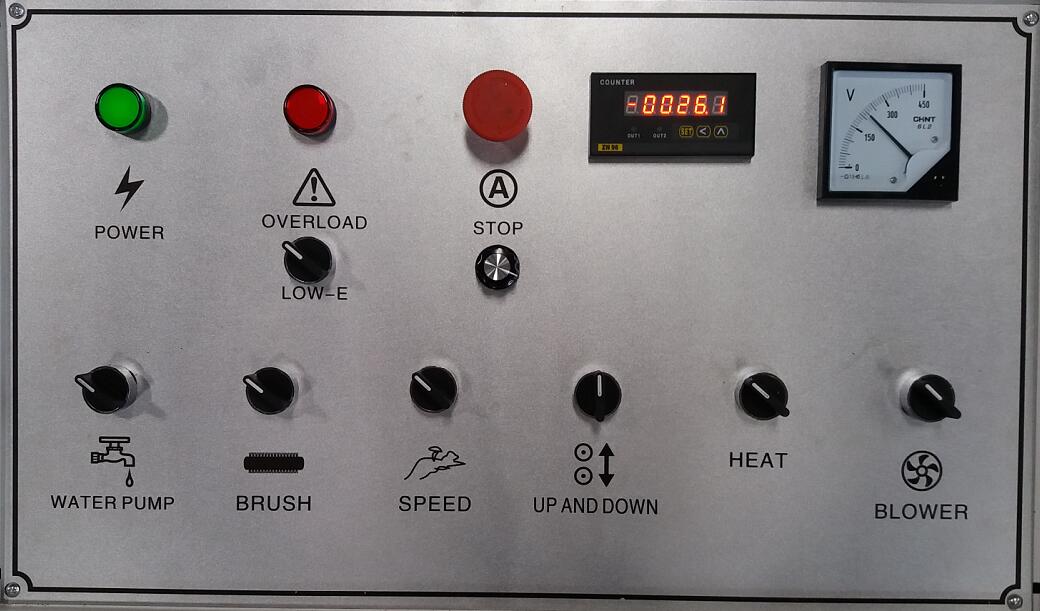

1.4 The washing section is adjusted by electric motor, with digital display.

Which can be elevated and lowered as a whole,and the Max.hoist height is 400mm.



2.Technical parameter:
2.1 Max. Processing Width: 2500mm
2.2 Min processing size: 350*350mm
2.3 Processing thickness: 3-30mm
2.4 Weight: 5500KG
2.5 Power: 23KW
2.6 Dimension: 7300*2860*3200mm


3.Machine Details :

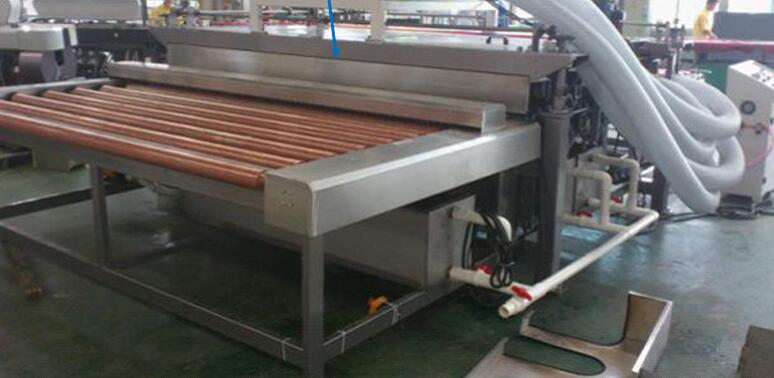

3.1 Sprinklers for pre-washing:

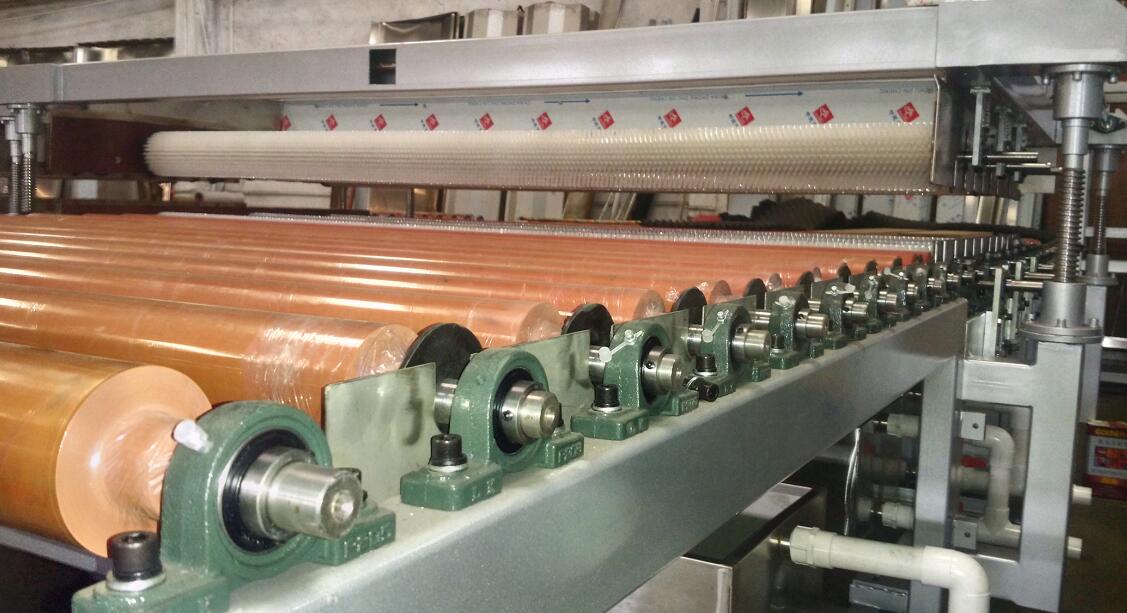

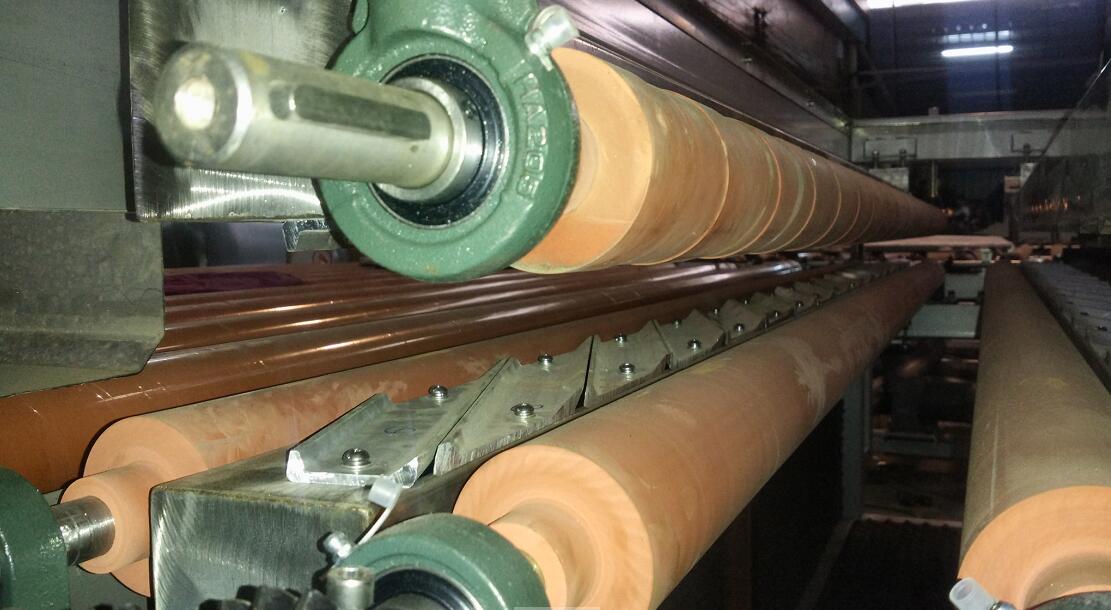

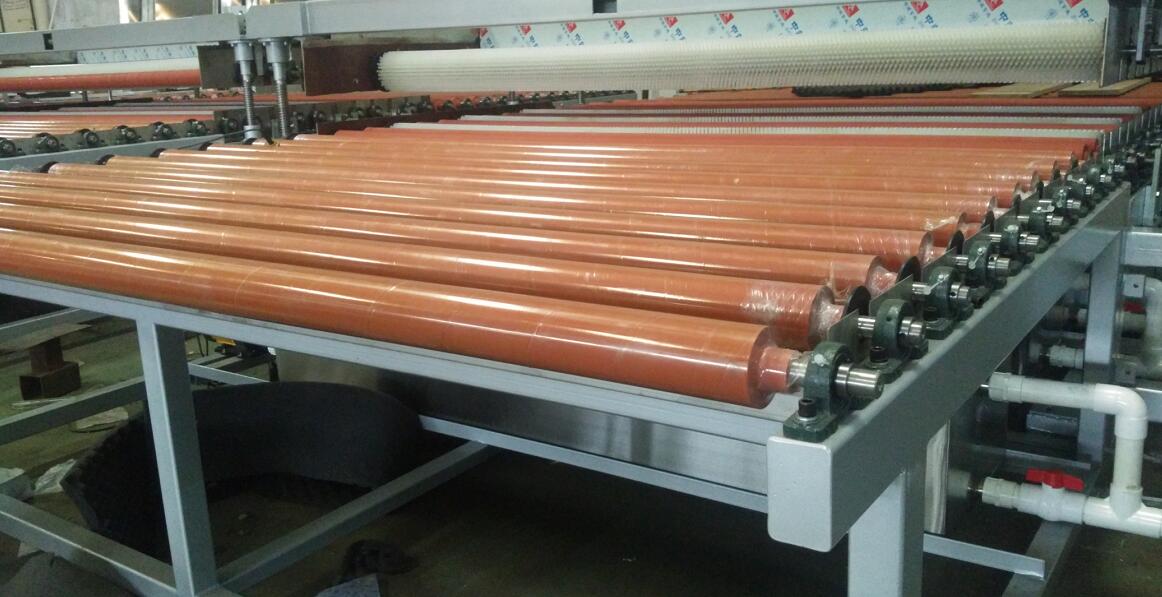

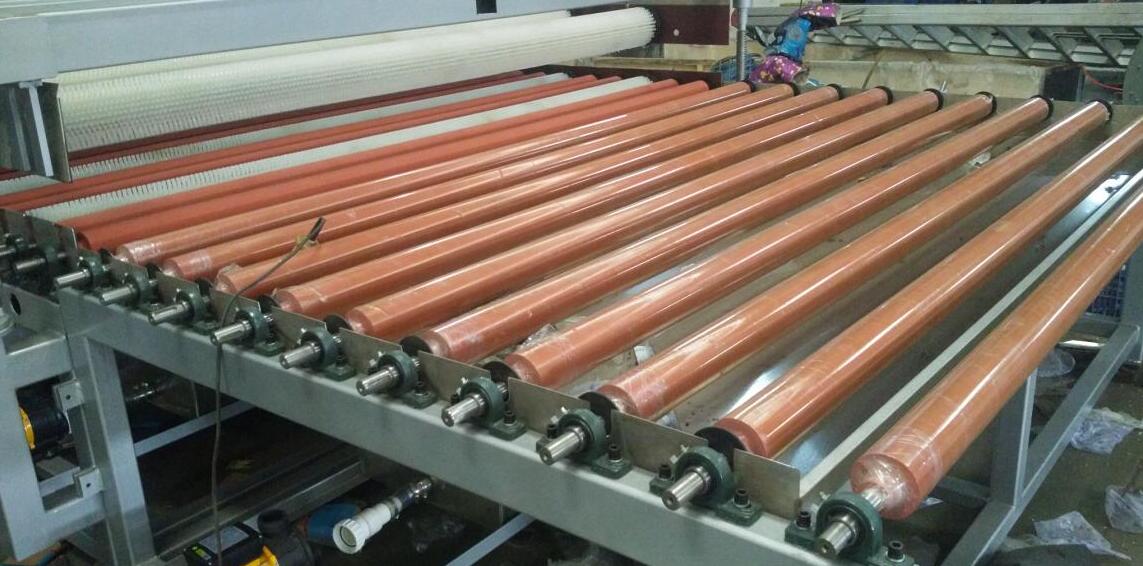

3.2 Transfer Rubber Roller:

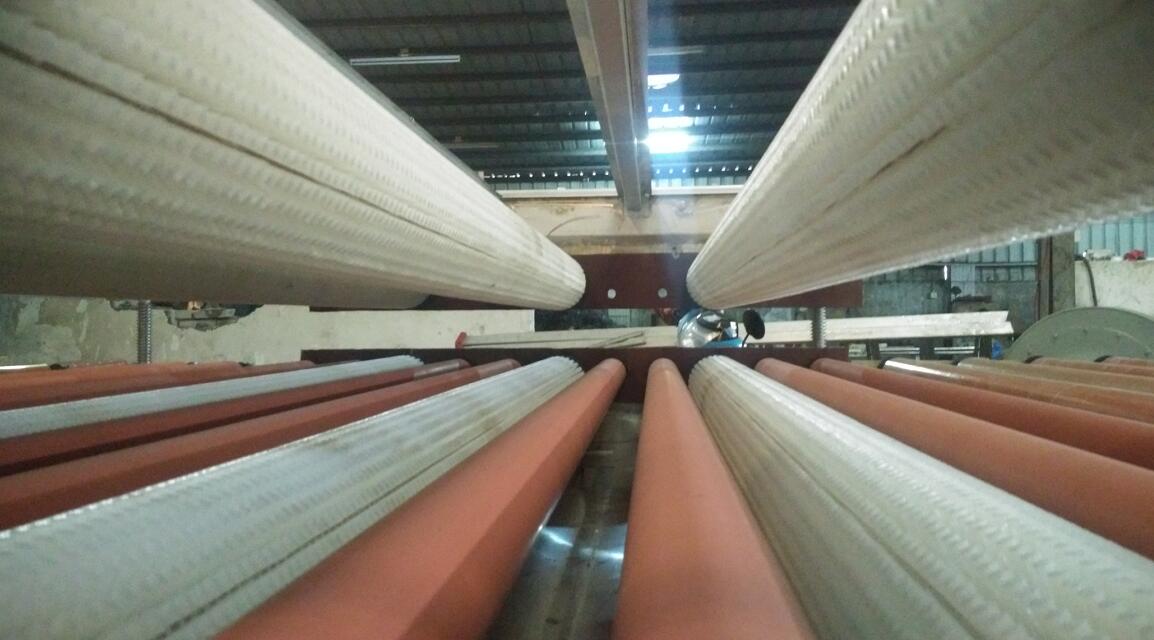

3.3Transmission of Brushes For Glass Cleaning:

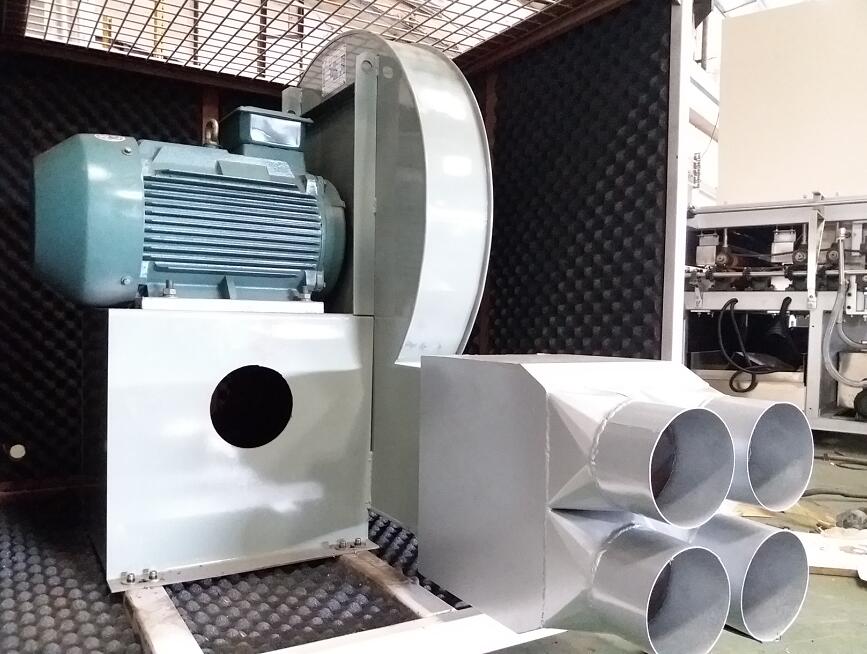

3.4 Air Blower For Glass Drying:

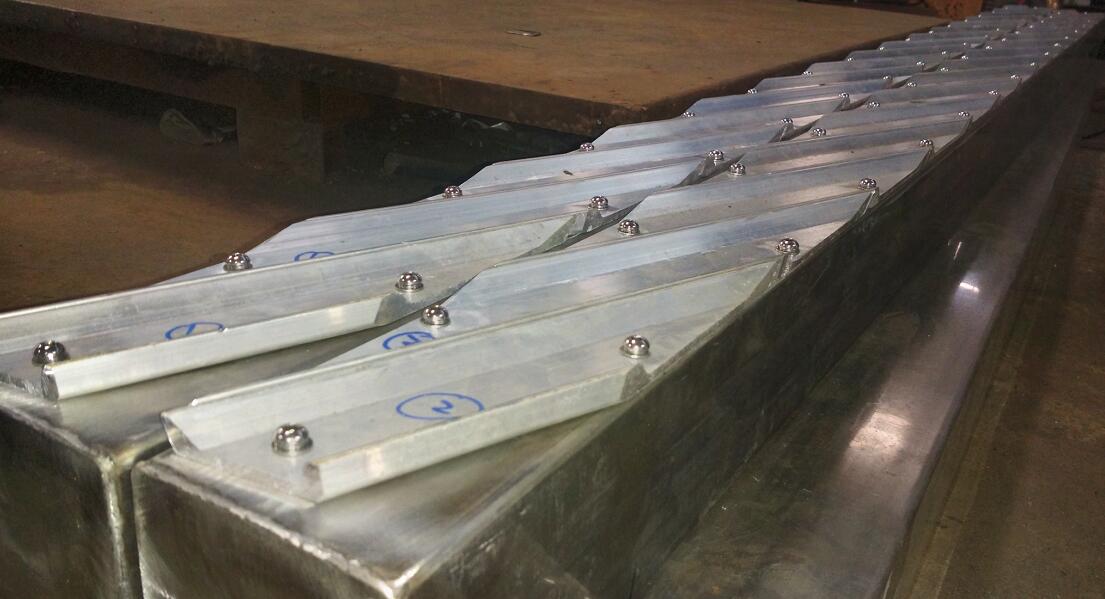

3.5 Air Knife For Glass Drying:
