LQX Means:Vertical Glass Washing Machine 16/20/25 Means:The height of processing glass from 1600mm,2000mm,2500mm. 1. Brief Introduction 1.1Vertical glass washing machine is suitable for washing flat glass with the thickness 4-19 mm. 1.2Adopts stepless regulator to control the convey speed, combine gear, chain and belt for transmit smoothly. 1.3The digital meter displays the glass thickness. 1.4Adopt 3 pairs of brushes to wash and two pairs of air knives for blowing strong wind to dry the glass. 1.5The machine adopts vertical transmission structure, the glass will pass by feeding section. 1.6Through cleaning section as well as wind drying section then reach the discharge end. 1.7Specific structure will be different according to customer requirement, please refer to the actual object while operating.
2. Technical parameter 2.1 Size of appearance: （L×W×H）: 6300×1000×2800mm 2.2 Height of working table：500mm 2.3 Total weight: 1100kg 2.4 Voltage: 380V; 50HZ / 220V，60HZ/415V，50HZ 2.5 Power: 11kw 2.6 Input speed: 1m/min～3m/min can be adjusted by stepless regulator 2.7 Processing scope:
Min.size of glass：350mm×350mm Max.size of glass：LQX16:1600mm(Height) LQX20:2000mm (Height) LQX25:2500mm(Height) 2.8 Glass thickness：4～19㎜ 2.9 Brushes：3 pairs

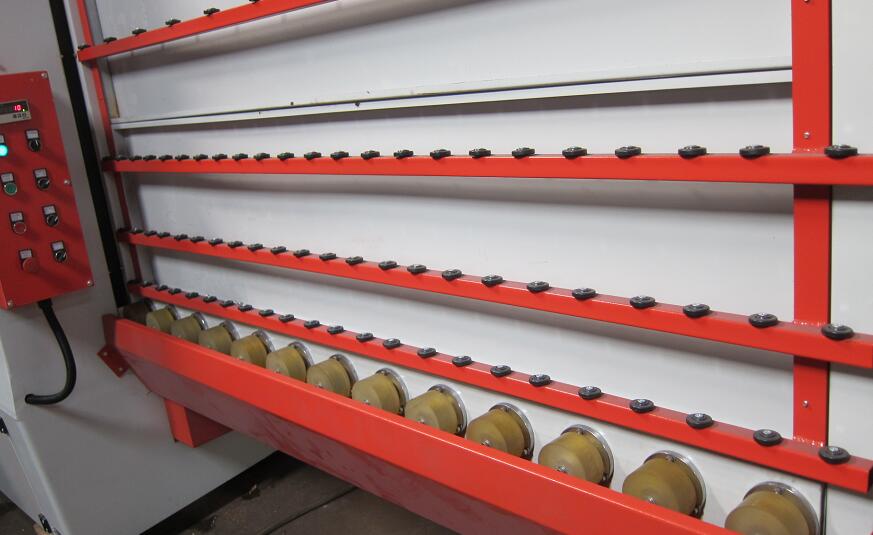

3.Close-up picture for vertical washing machine 3.1Transfer Rubber:

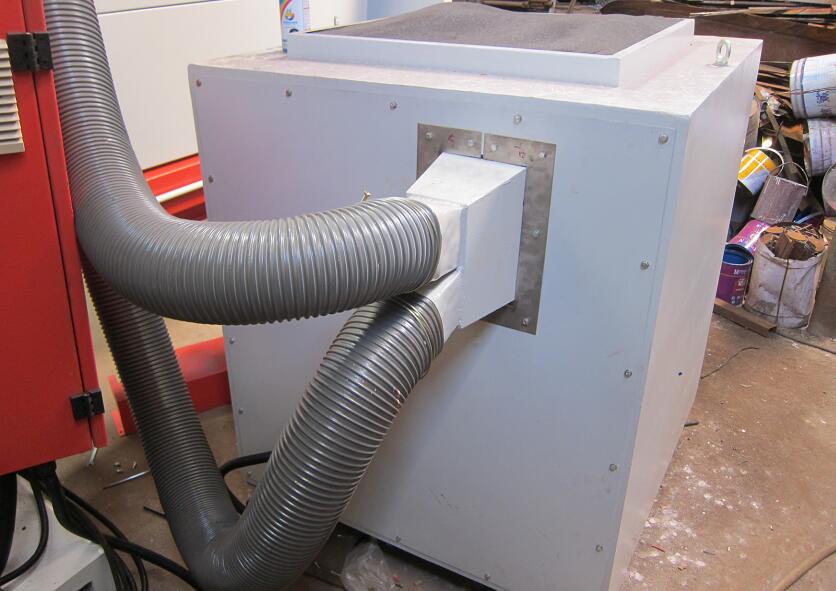

3.2 Air Blower For Glass Drying:

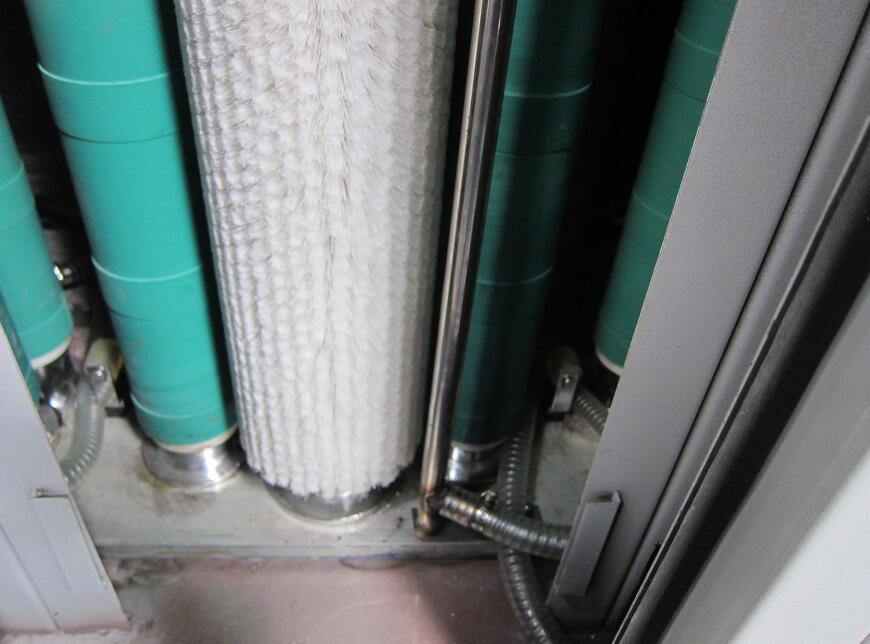

3.3Transmission of Brushes For Glass Cleaning:

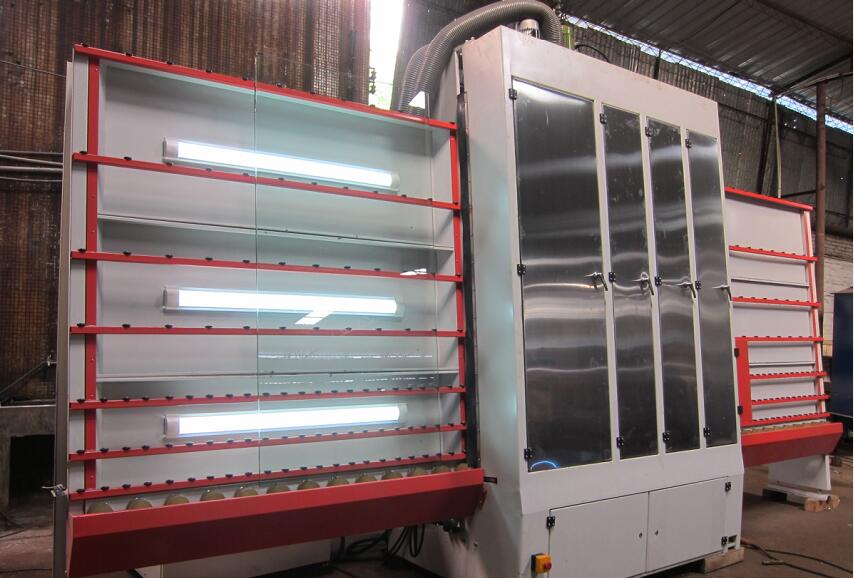

3.4 The close-up picture of Vertical Washing Machine:

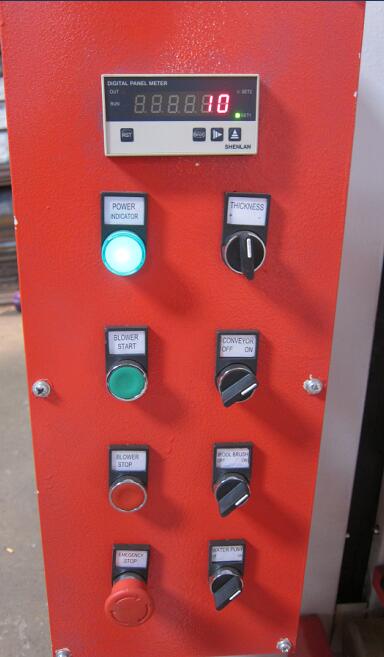

3.5 The digital meter displays the glass thickness:
