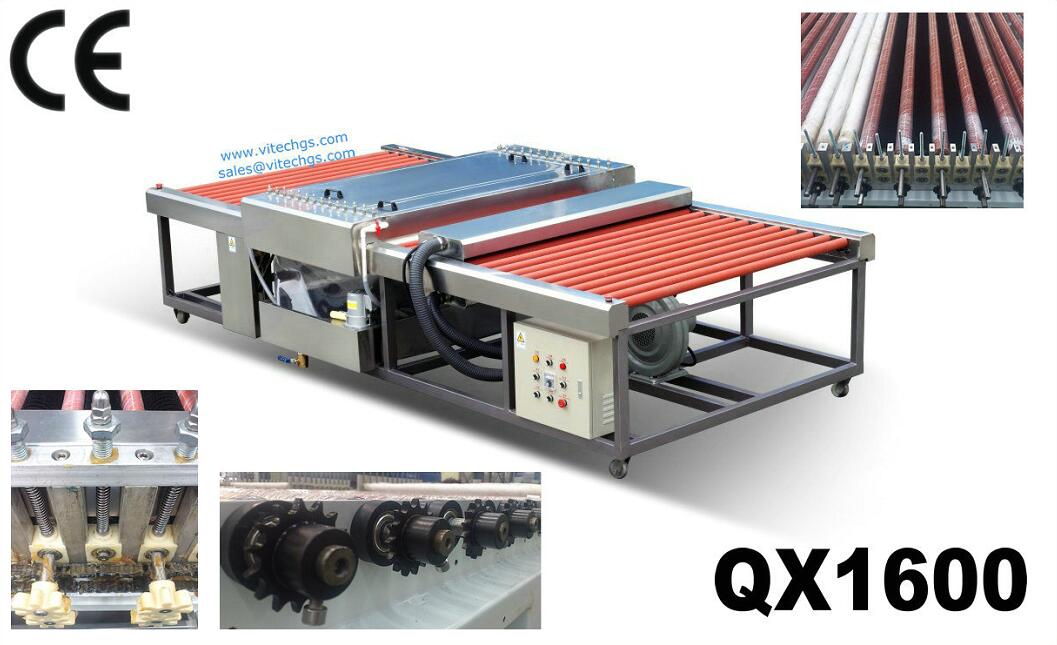

QX1600 Horizontal Glass Washer and Dryer

1.General description
1.1 The processing speed of this glass washing and drying machine is adjusted by variable motor with horizontal structure.
1.2 There are four pairs of brushes and three pairs of sponge rollers which can make the performance of machine reliable.
1.3 The temperature of hot-air can be set in advance.
1.4 Different designs of glass washer and drier are available to meet customers' requirements.

2.Technical parameters

Max.Size	1500*2100mm
Min.Size	150*150mm
Thickness	3-15mm
Processing Speed	0.7~3.5m/Min
Brushes	4pairs
Power	10Kw
Weight	900kg
Dimension	410020001100mm

3.Machine Details:

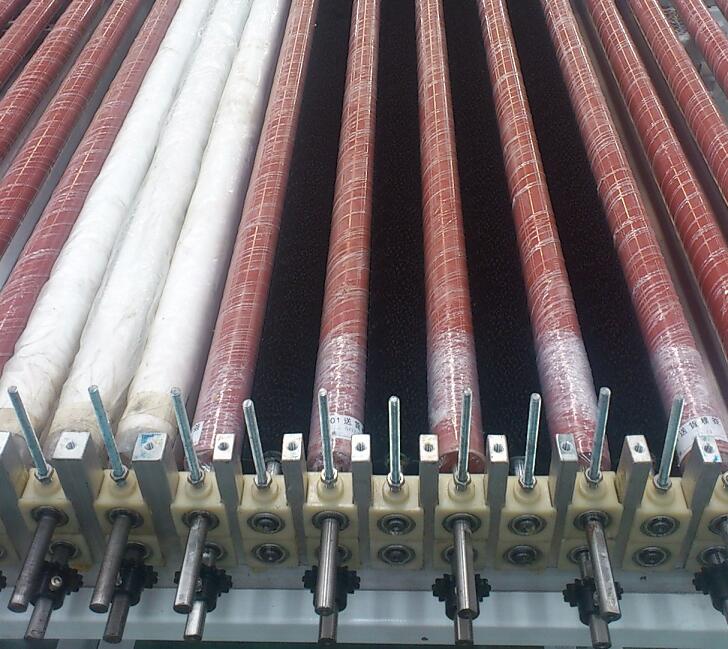

-Four pairs of brushes and three pairs of sponge rollers:

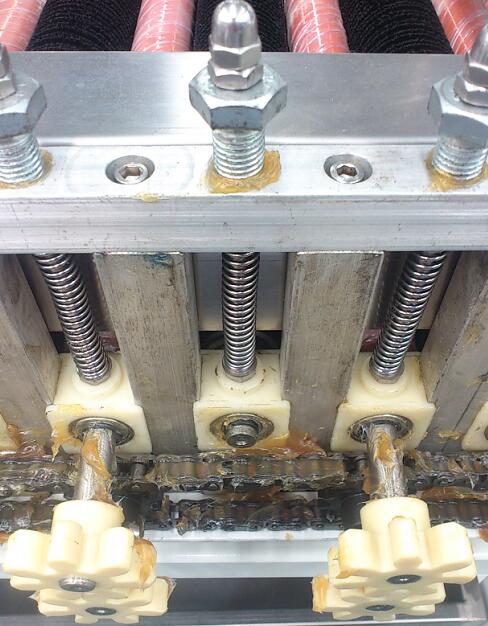

-Glass was adjusted automatic by Spring from 3mm to 15mm:

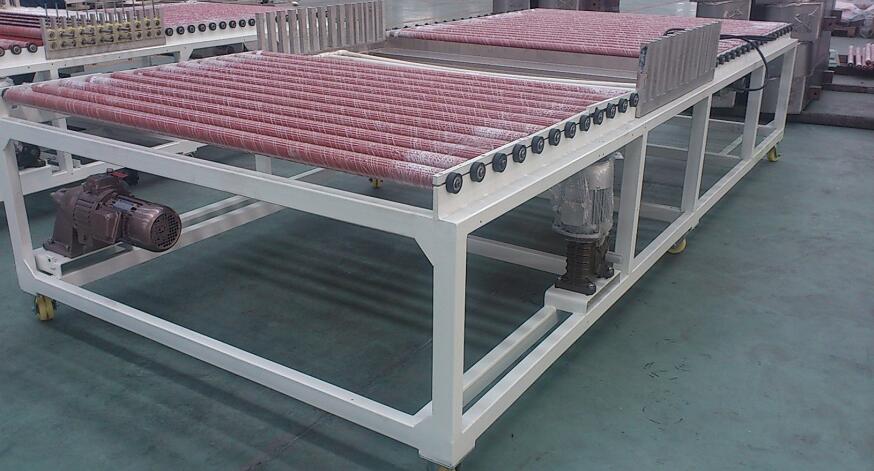

-The close-up picture of Horizontal Washing Machine:
