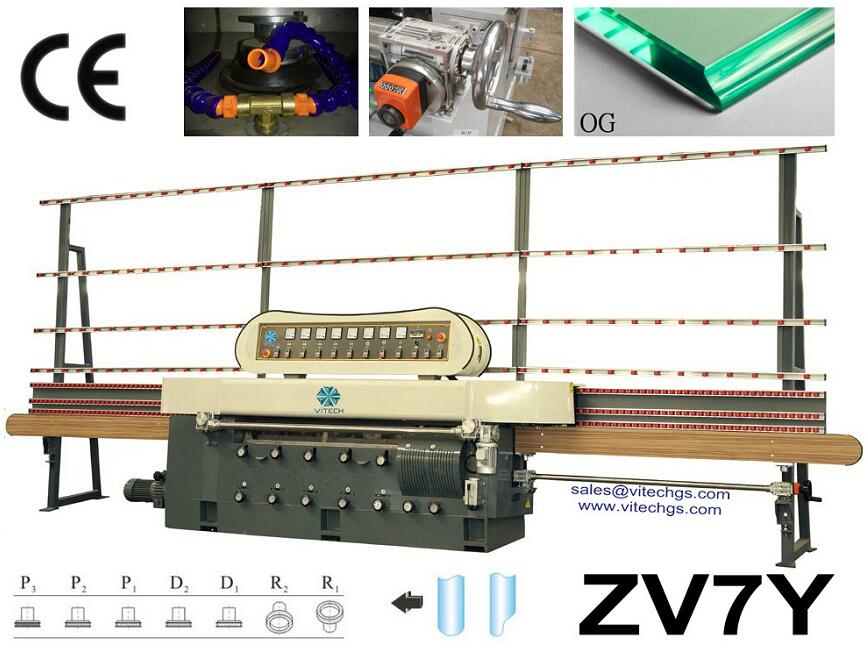

ZV7Y 7 Spindles Glass Straight-line Pencil Edging Machine

1.Brief Introduction
1.1 ZV7Y glass edger can process pencil/OG edges with different shape wheels.
1.2 Rough grinding, fine grinding and polishing of the pencil edge can be finished at one time by this glass edger
1.3 The same thickness of glass sheets can be processed continually.
1.4 The brightness of pencil edge will be close to the original glass after polished.
1.5 This glass edger machine is easy to operate and has good performance.

2. Technical parameter
2.1 Processing glass thickness: 3～19mm
2.2 Min. size processing glass: 80mm×80mm
2.3 Processing speed: 0.5～4.5m/min
2.4 Installation power: 15.93KW
2.5 Dimension: 6600 ×1100×2500MM

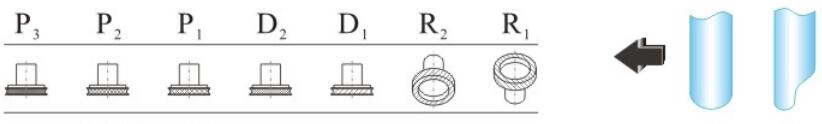

3. Wheels disposal

No.	Name	Functions
No.1	Resin wheel	Semi-fine grinding for front arris
No.2	Resin wheel	Semi-fine grinding for back arris
No.3	1#Round wheel	Rough grinding of pencil edge
No.4	2#Round wheel	Semi-rough grinding of pencil edge
No.5	BK60	Semi-fine grinding of pencil edge
No.6	BK120	Fine grinding & Polishing of pencil edge
No.7	BD Wheel	Polishing of pencil edge

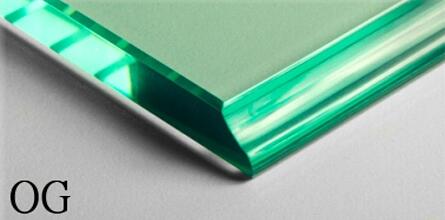

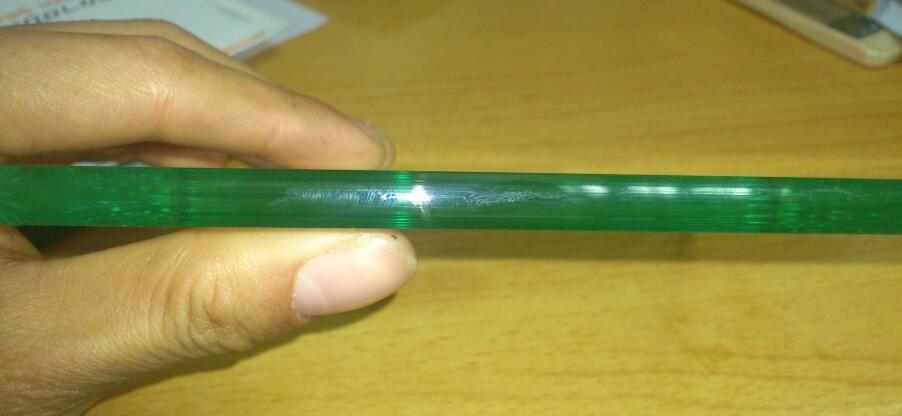

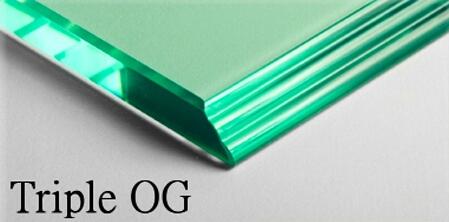

4.Glass Samples:

5.Option:
5.1 Manual Control:It adopt a hand wheel to adjust the glass thickness, which is suitable for the straight-line edging machine only.

5.2 Digital Display Control:There have digital meter onto the machine panel to adjust the glass thickness. You just need to increase or decrease the parameter you need by the relative switch, then machine can be adjust automatically.

5.3 PLC and Pneumatic Control:Adopt PLC and touch screen, you can input the parameter you need and machine will adjust automatically.
