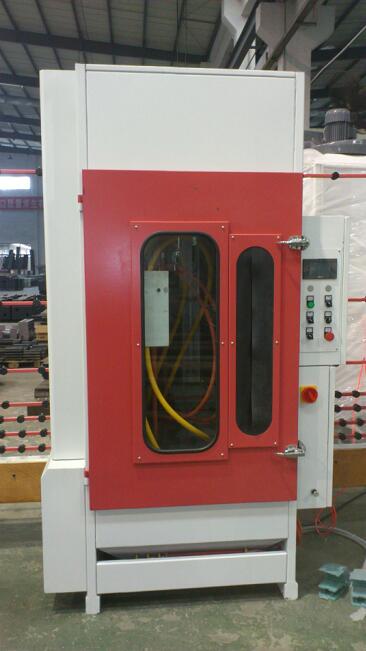

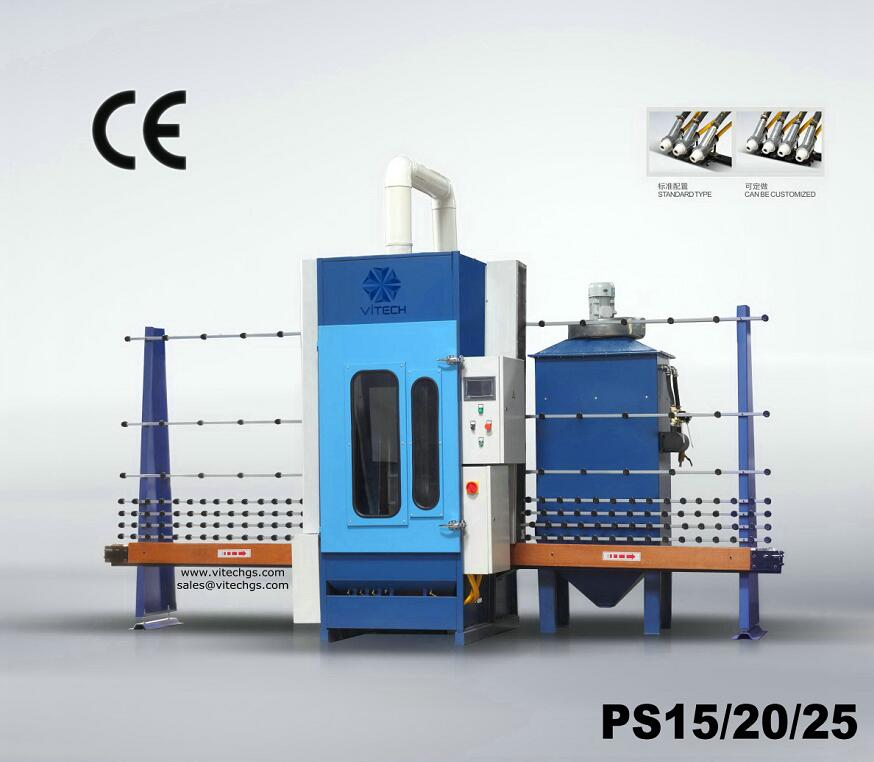

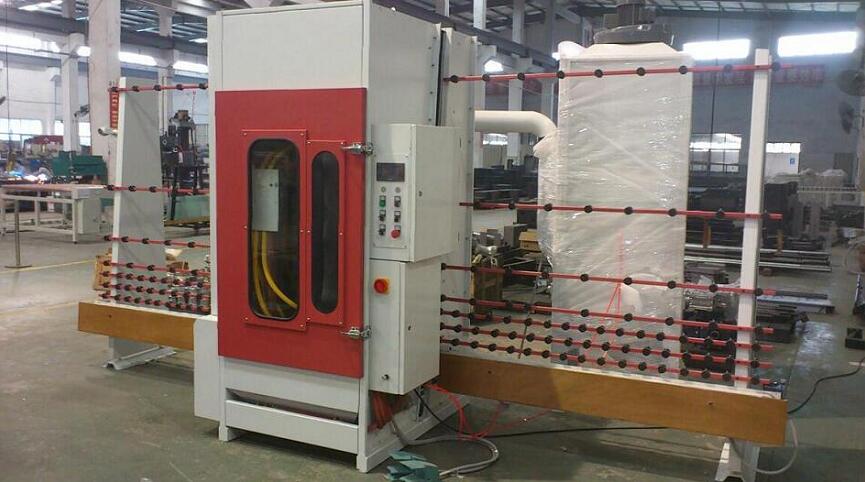

PS Means:Sandblasting machine 15/20/25 means: The height of processing glass for 1500mm,2000mm,2500mm

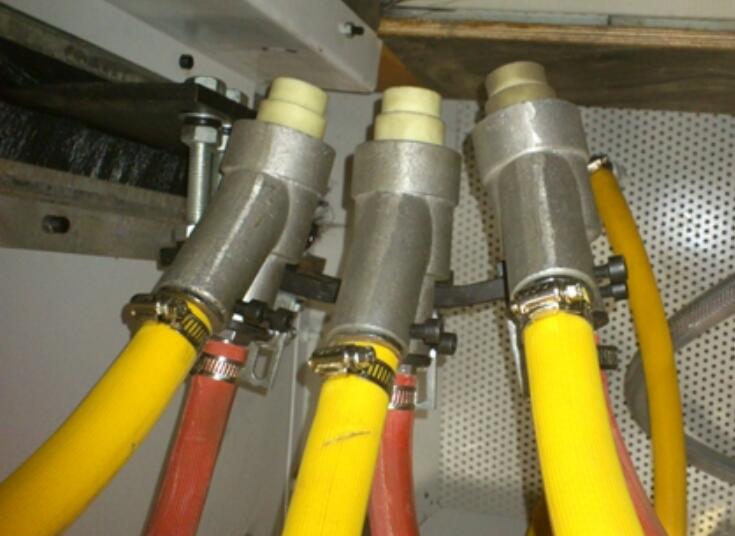

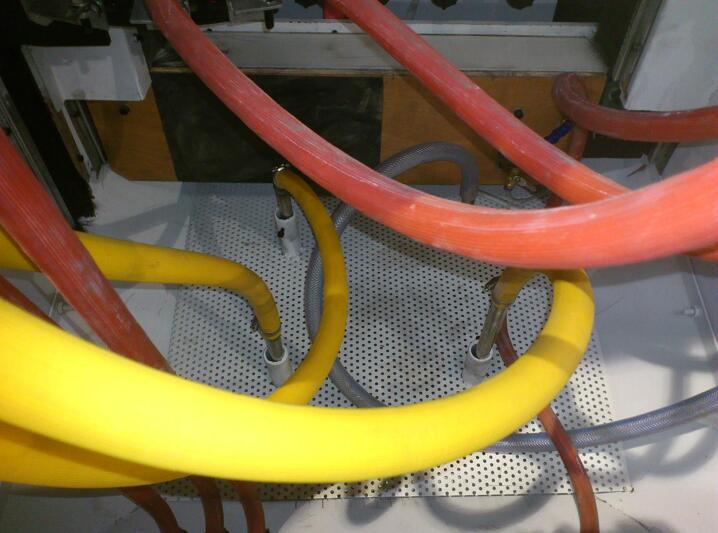

1.Brief Description: 1.1 The machine has full-automatic and manual functions, equipped with 3 automatically guns and 1 manual gun. 1.2 The nozzles of guns are made of special material which can increase using life.
2. Technical parameter: 2.1 Size (length×width×height): (1) 1500mm: 4800×1500×2300mm (2) 2000mm: 7400×1500×2780mm (3) 2500mm: 7400×1500×3300mm 2.2 Height of conveyor: 550mm 2.3 Height of processing glass:(1)1500mm;(2)2000mm;(3)2500mm 2.4 Speed for sandblasting:12-15 m2/h (when use Green carborundum) 2.5 Air source of exterior:Air pressure: 0.6~0.8Mpa/Air output: 5m3/min
1m3 gas storage and purifying equipment for compressed air are needed. 2.6 Total power: 3.5kw

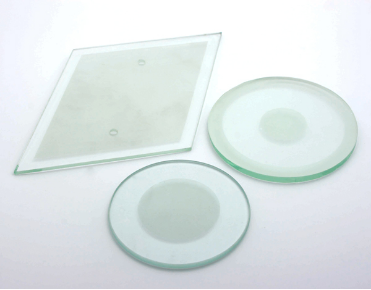

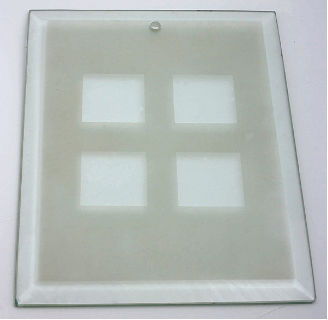

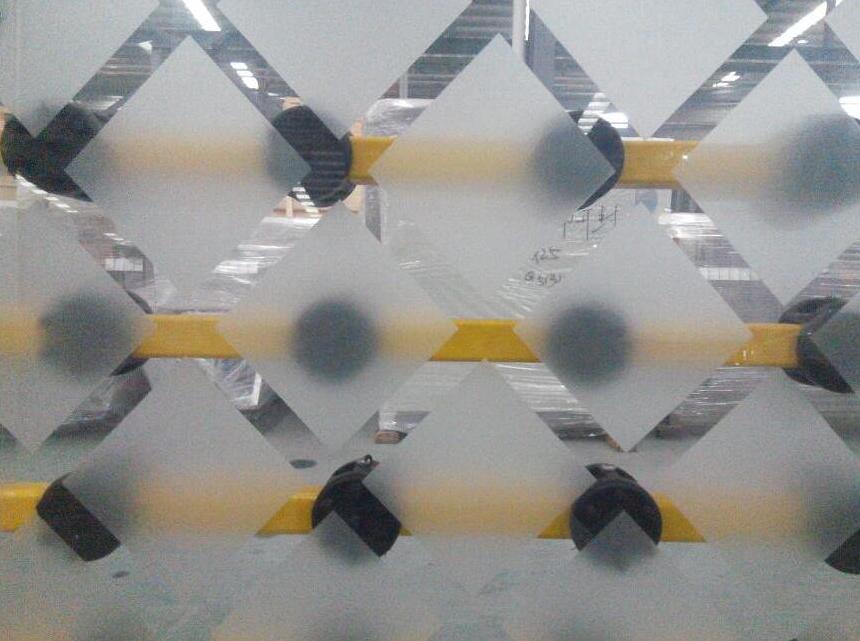

3.Glass Samples:
PLEASE NOTE THAT OUR FULL SET OF GLASS SANDBLASTING MACHINE IS NOT INCLUDING THE AIR COMPRESSOR!!!!!!!!!!!!!!!!!!!
