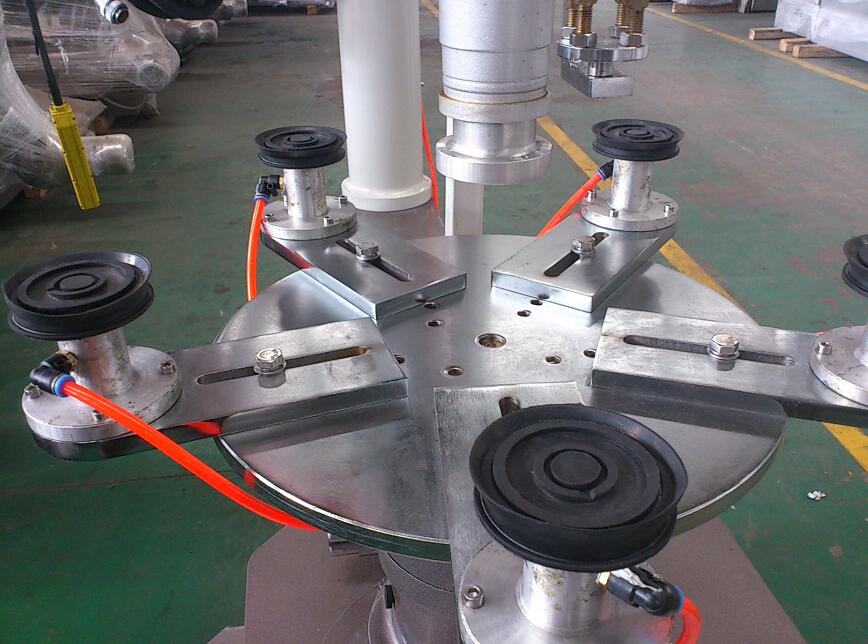

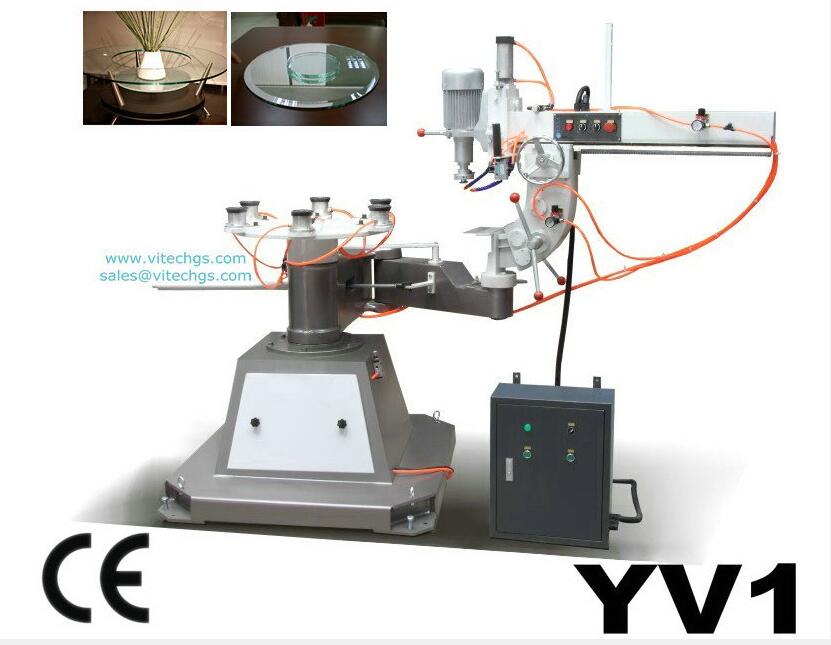

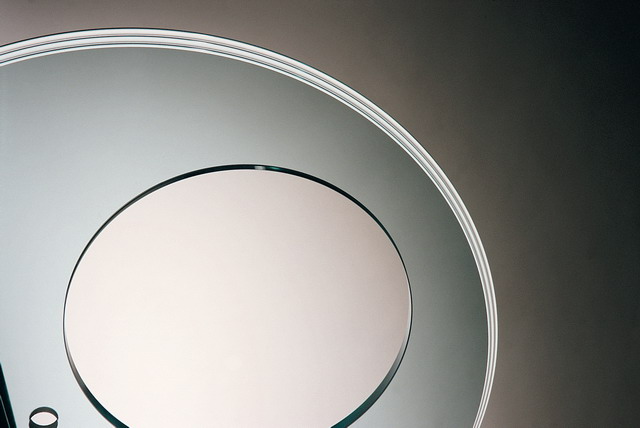

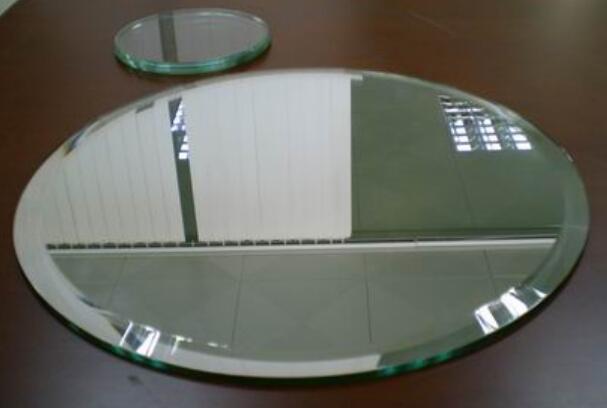

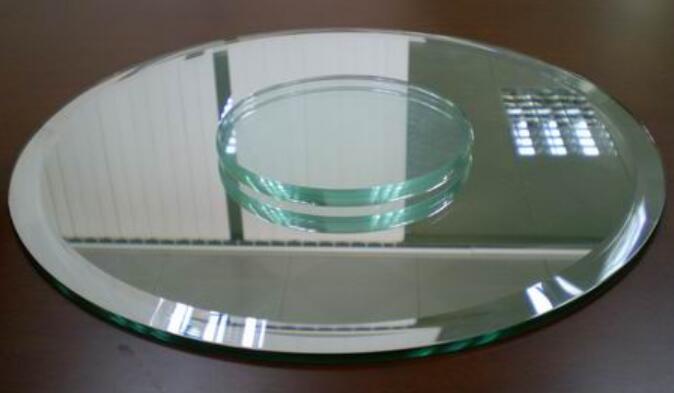

1.Brief Description: 1.1The machine is suitable for grinding and polishing inner&external edges of shaped glass. 1.2YV1 is developed on the basis of YXV1 with extra function of grinding internal round,oval and other shape. 1.3By changing the grinding wheel, different edge profiles(flat edge with arris,pencil edge and OG edge)can be processed. 1.4The height of the spindle is easy to adjust. 1.5A pneumatic cylinder (included attachment) makes it possible to process round glass automatically. 1.6The turntable drive motor and worn gear are installed in the base housing. Its speed is adjusted by a step-less motor.
2.Technical parameter: 2.1 Environment temperature：1℃ ～ 40℃ 2.2 Relative air humidity：≤ 90﹪ 2.3 Applied vacuum degree scope：-0.05 MPa～-0.1 MPa 2.4 Water pressure：0.1 MPa～0.2 MPa 2.5 Air supply pressure：0.6 MPa～０.8 MPa 68L/min 2.6 Glass thickness: 3 mm～40 mm 2.7 Glass external diameter：φ110 mm～φ2100 mm 2.8 Glass internal diameter：φ150 mm～φ600 mm 2.9 Maximum radii of curvature：R75mm 2.10 Rotation speed of spindle：2850r/min 2.11 Rotation speed of working table：0.8 r/min～4.0 r/min 2.12 Installation power：3.0ＫW 2.13 Total height of the main machine：1915 mm 2.14 Max rotating radii：960 mm 2.15 Height of working table：1100 mm 2.16 Weight：About 1000Kg
