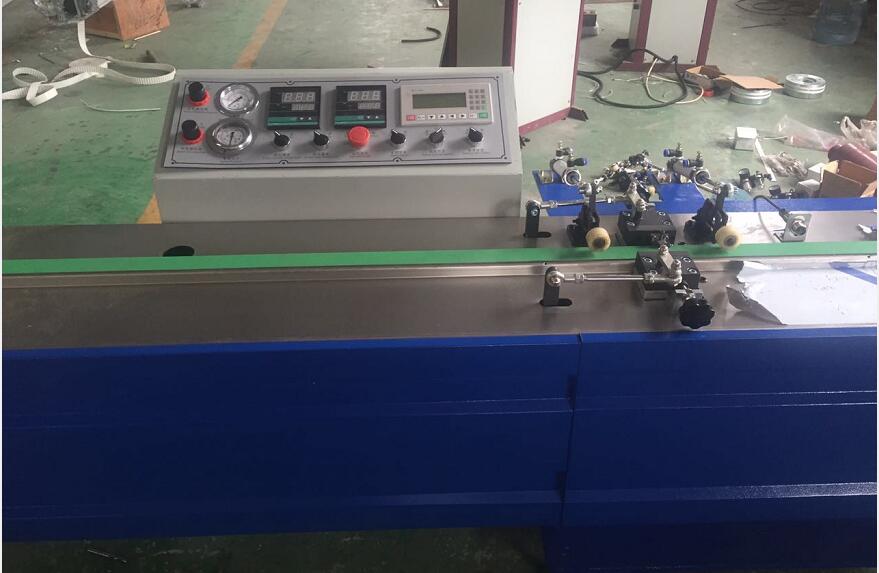

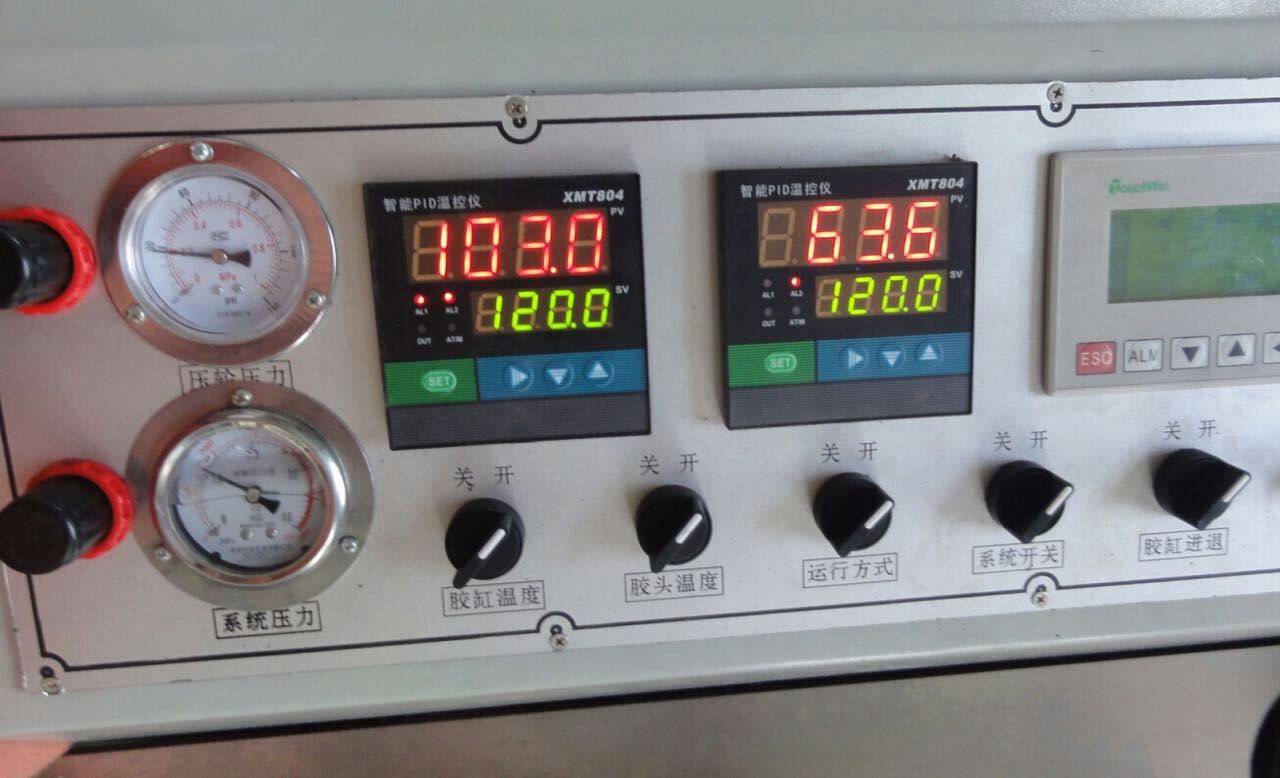

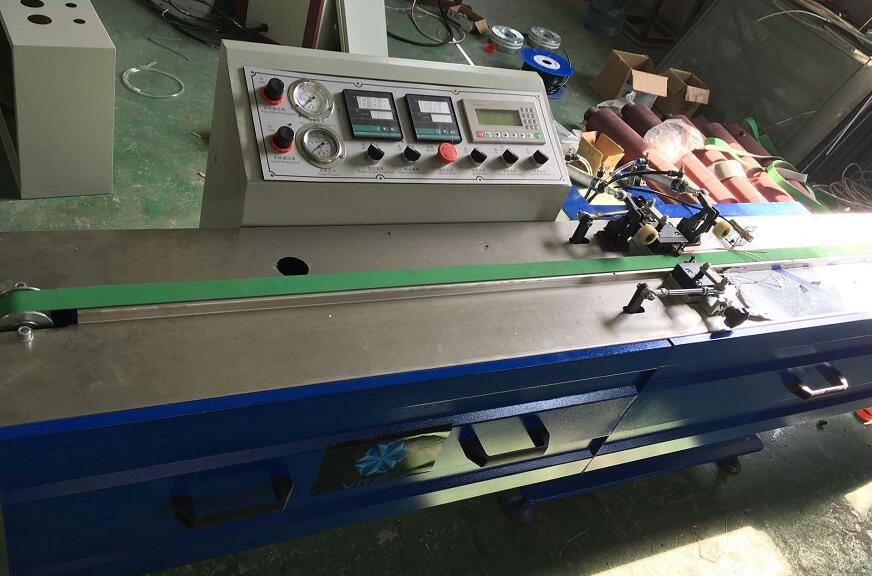

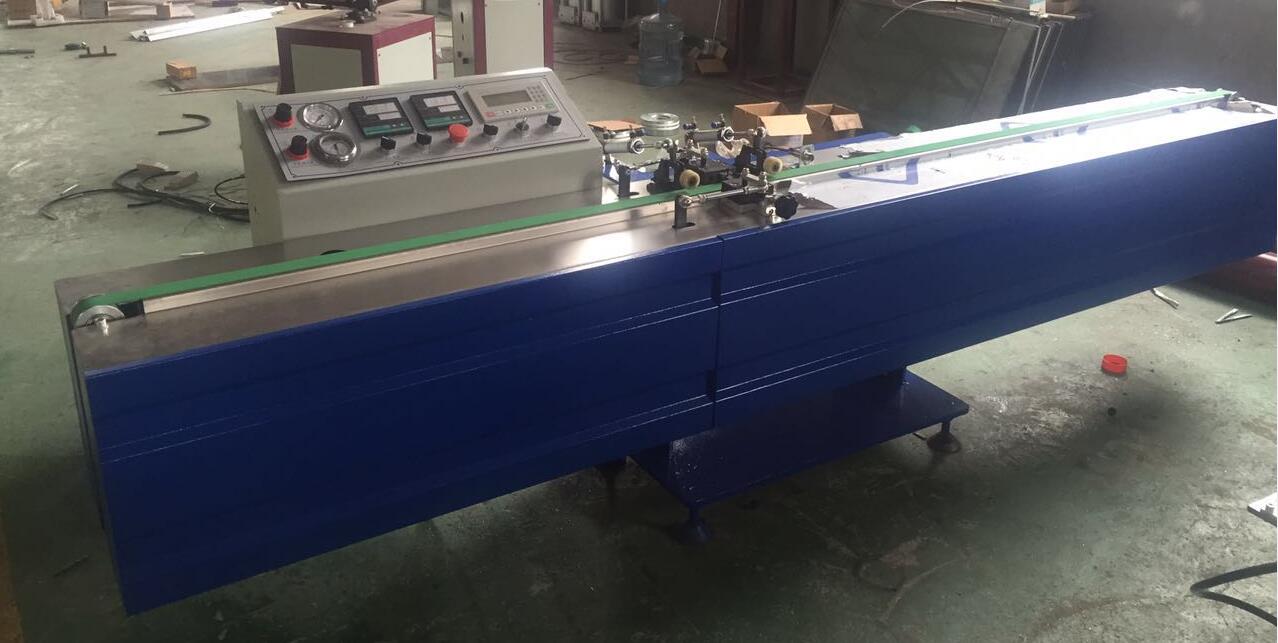

Equipment Features: 1.This machine is used for the first sealing of insulating glass,butyl sealant coating. 2.Coating for straight line and arc shapes of aluminium spacer. 3.The temperature of the sealant is automatic controlled by Digital Display Control. 4.The coating effect is uniform,the efficiency is high. 5.The distance between the two sealant mouth can be adjusted,no need to release the pressure and fasten the screw,easy and convenient. Main Specification and Technical Parameter: 1 Controlled by digital display system can show us the quantity of the glue semi-automatically. 2 This butyl coating machine has the features of stepless speed regulation and semi-automation of location, transmission and rubber spreading. 3 This butyl rubber coating machine adopts advanced imported air and hydraulic pressure system with even and stable pressure. 4 Butyl spreading is well-proportioned and the linearity is good. 5 Our butyl coating machines adopt the imported hydraulic and pneumatic supercharging system. 6 Temperature and pressure can be adjusted . 7 The butyl jar warning system of this butyl rubber coating machine will work when glue material is used up. 8 Parameter 8.1 Voltage: 380V 50HZ OR 220V 60HZ 8.2 Power: 4.5KW 8.3 Air pressure: 0.5-0.8Mpa 8.4 Air consumption: 50L/min 8.5 Transmit speed: 0-40m/min 8.6 Temperature: 90-180°C 8.7 Squeeze pressure: 12-16Mpa 8.8 Adjustable range: 3-30mm 8.9 Overall dimension: 3000mm x 700mm x 1250mm 8.10 Weight: 300kg
