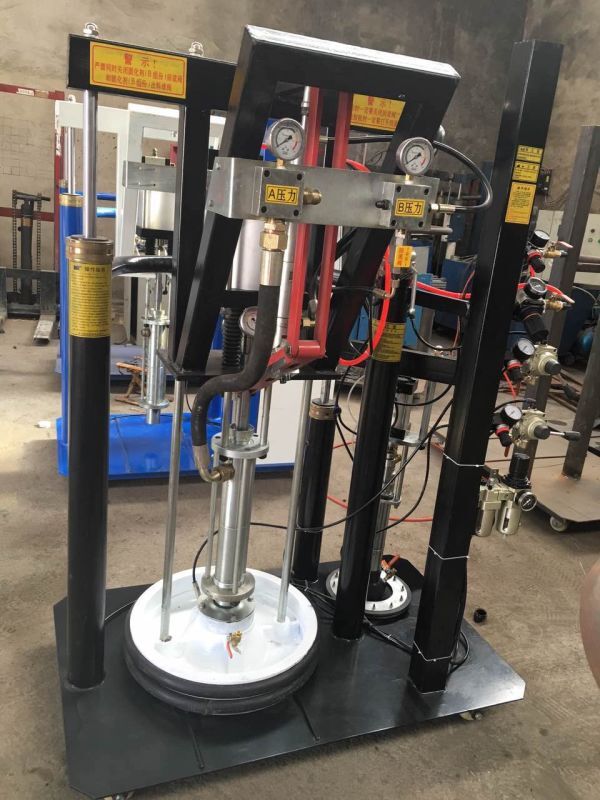

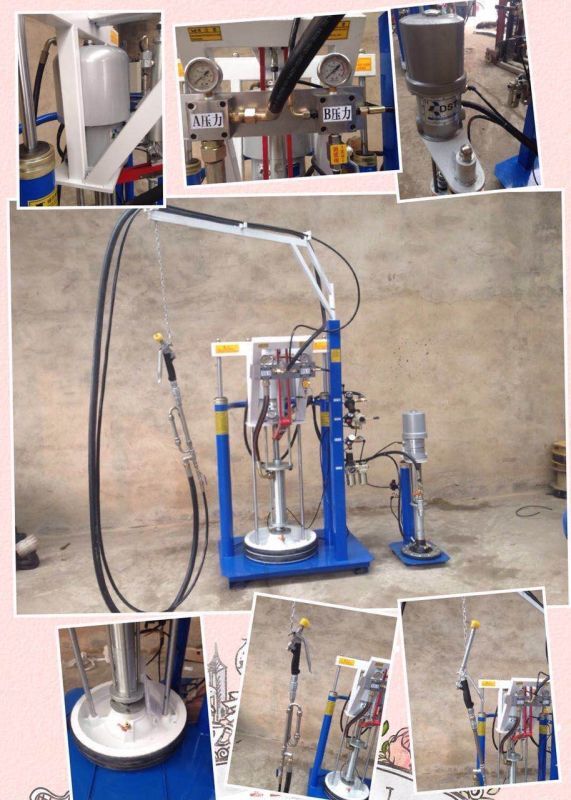

This two component sealant extruder becomes one of the most important equipment to make insulating glass and curtain wall glass.
Product Description 1 This two component coating machine is a special machine spreading two-component polysulphide sealant when making aluminum groove type insulating glass and curtain wall glass. 2 Controlled by no-touch-point electric control system, this two component sealant extruder is smooth to run,
flexible and reliable to change direction, and continuous and stable to extrude sealant. 3 The main and auxiliary pumps are activated by hydraulic lubrication oil and compressed air. 4 This two component coating machine also adopts good parts to ensure its coating quality. 5 Feature:Featuring high efficiency, convenient operation and maintenance.
Parameter 1 Voltage: .............................................380V 50HZ OR 220V 60HZ 2 Power: ...............................................1.1KW 3 Air pressure: .....................................0.5-0.8Mpa 4 Air consumption: .............................0.6L/min 5 A pump pressure plate size: ...........Φ565 (50 gallon barrel) 6 B pump pressure plate size: ............Φ285 (5 gallon barrel) 7 Mixed rate: ..........................................100:6.5-100:14.5 8 Overall dimension: ...........................1100mm x 950mm x 1630mm 9 Weight: ................................................600kg 10 Glue type:...........................................SILICON,SULFIDE,URETHANE
